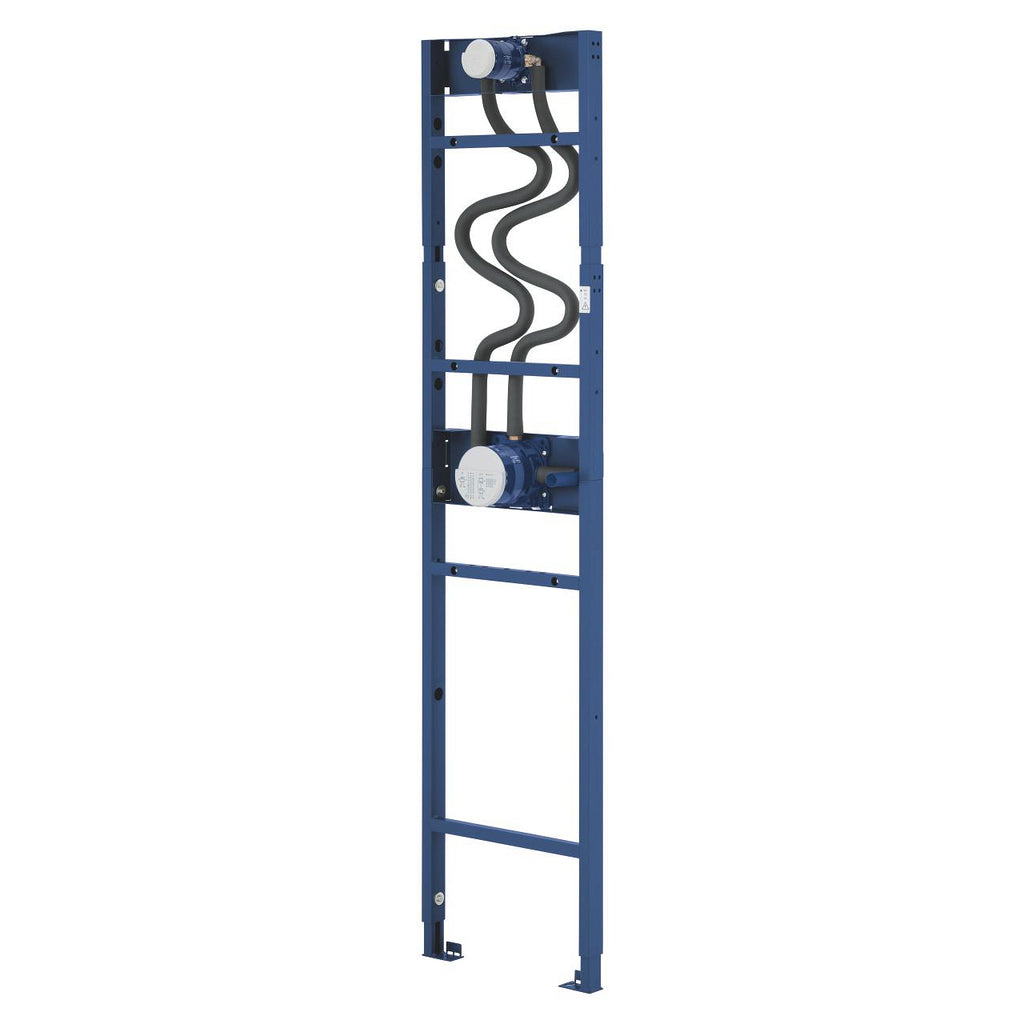

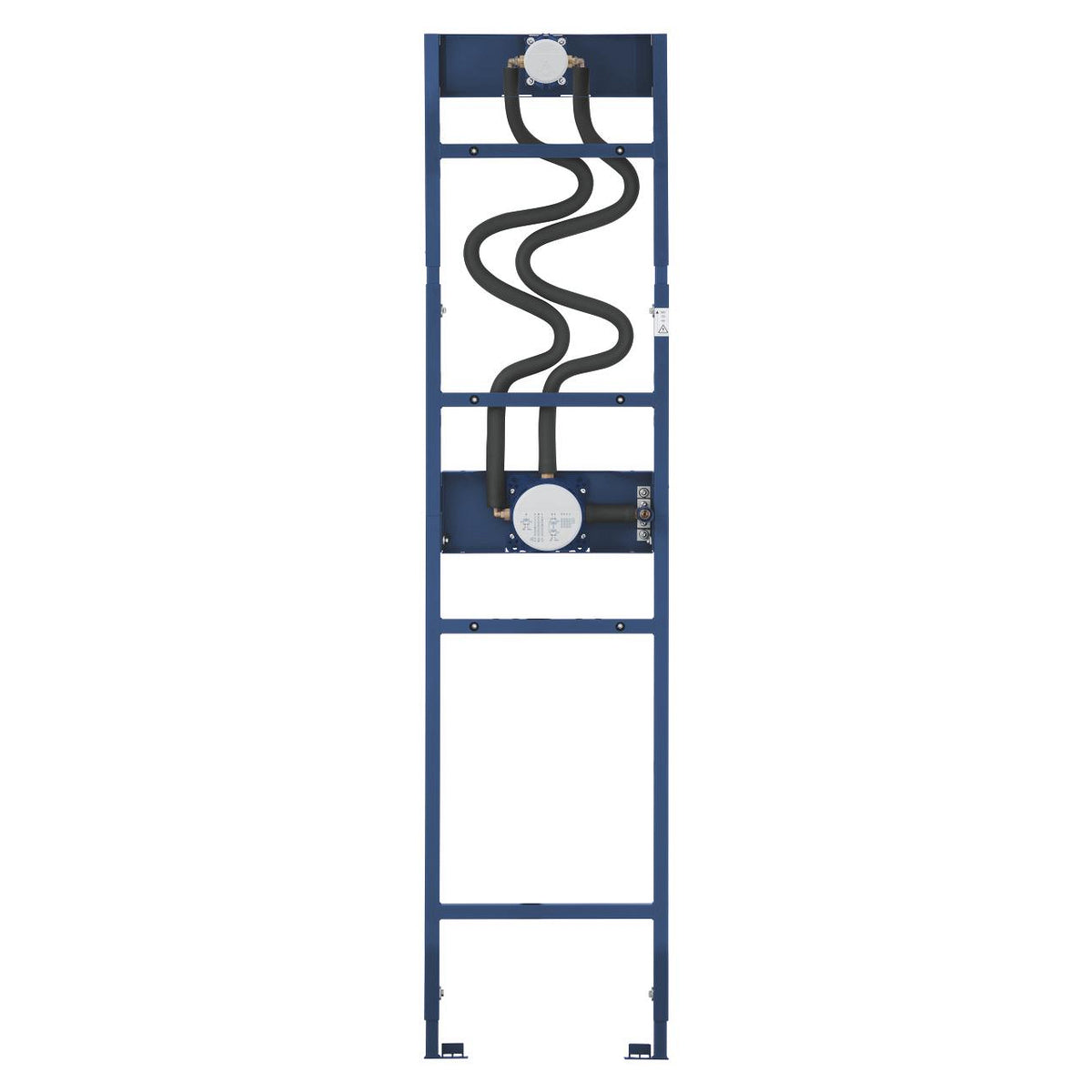

Grohe Rapido Ankastre Duş Sistemi Montaj Çerçevesi – 1039949990

To create the bathroom of your dreams with a cutting-edge concealed shower system the sturdy powder-coated, self-supporting GROHE Rapido shower frame duo is the perfect partner. It’s completely pre-assembled. The all-in-one package comes with wall outlets for hand and head shower*, mixed water pipes, a GROHE Rainshower Universal rough-in box with 2 inlets for a head shower with two sprays (both with max. 9.5 l/min flow rate) and the GROHE Rapido SmartBox universal rough-in box with 2 bottom inlets, all pre-mounted – and is a perfect fit for our separately sold Grohtherm concealed shower systems 1039970000 and 1039980000. The mounting is straightforward and hassle-free and designed for on-the-wall installations or dry-cladding**. Installation depth from rough wall to frame front is minimum 67 mm, while from rough wall to end finish it’s variable from 77 mm to 107 mm. For customisation the height of the head shower outlet is adjustable by 180 mm. Sealing fleeces are also included in the set (leak test done ex factory). * Suitable for GROHE shower outlet elbows with male connection threads (1/2") ** For on-the-wall installation please order wall brackets 1039999990, sold separately.

● for shower installations with one hand shower and a duo spray head shower
● pre-mounted rough-in set GROHE Rapido SmartBox (35 604)
● pre-mounted rough-in set 9.5 l/min for head shower (107 241 9990)
● pre-mounted wall outlet for hand shower
● pre-mounted and insulated mixed water pipes
● for on-the-wall installations or dry-cladding
● elektrostatik kaplamalı çelik çerçeve, kendinden destekli
● completely pre-assembled
● derinlik ayarlanabilir
● aşağıda 2 giriş , 1/2''
● min. installation depth (from rough wall to end finish) 77-107 mm
● min. installation depth (from rough wall to frame front) 67 mm
● head shower outlet height adjustable by 180 mm
● sealing fleeces
● leak test done ex factory
● suitable for concealed 3-function trim sets
● suitable for GROHE shower outlet elbows with male connection threads, 1/2"
● suitable for Rainshower SmartActive 310 2-spray head shower with 430 mm shower arm
● perfect fit for Grohtherm concealed shower systems 103 997 0000 and 103 998 0000
● for on-the-wall installation please order wall brackets 103 999 9990 (sold separately)
● Profesyonel versiyon

Ölçü ve teknik çizim



Teknik belgeler
● Teknik Bilgi Föyü (PDF)
● Montaj Kılavuzu (PDF)
● 2D Teknik Çizim (DWG)
● 2D Teknik Çizim (DXF)
● 3D Model (DXF)
● BIM / Revit Paketi (ZIP)
